Branch Deployments (Git)

Branch deployments build and deploy directly from a GitHub repository. Edka watches a branch or tag, builds your image with Railpack, pushes it to the cluster default registry, and deploys it automatically.

Note: Branch deployments are only supported for GitHub repositories at the moment.

Requirements

  • GitHub integration connected to the repo.
  • A default container registry configured for the cluster.
  • For previews: an ingress controller and a preview wildcard domain. See Domains and wildcard TLS.

Create a branch deployment

  1. Open a cluster and go to Deployments.
  2. Choose GitHub Deployments and select a repository.
  3. Configure the branch or tag, Dockerfile path, and build context.
  4. Set an image repository name for the build output. It should be the default container registry for the cluster (e.g. ghcr.io/your-username/your-repo).
  5. Optional: enable auto build and auto deploy. Edka will build and deploy your application to your cluster automatically each time you push a new commit to the branch.

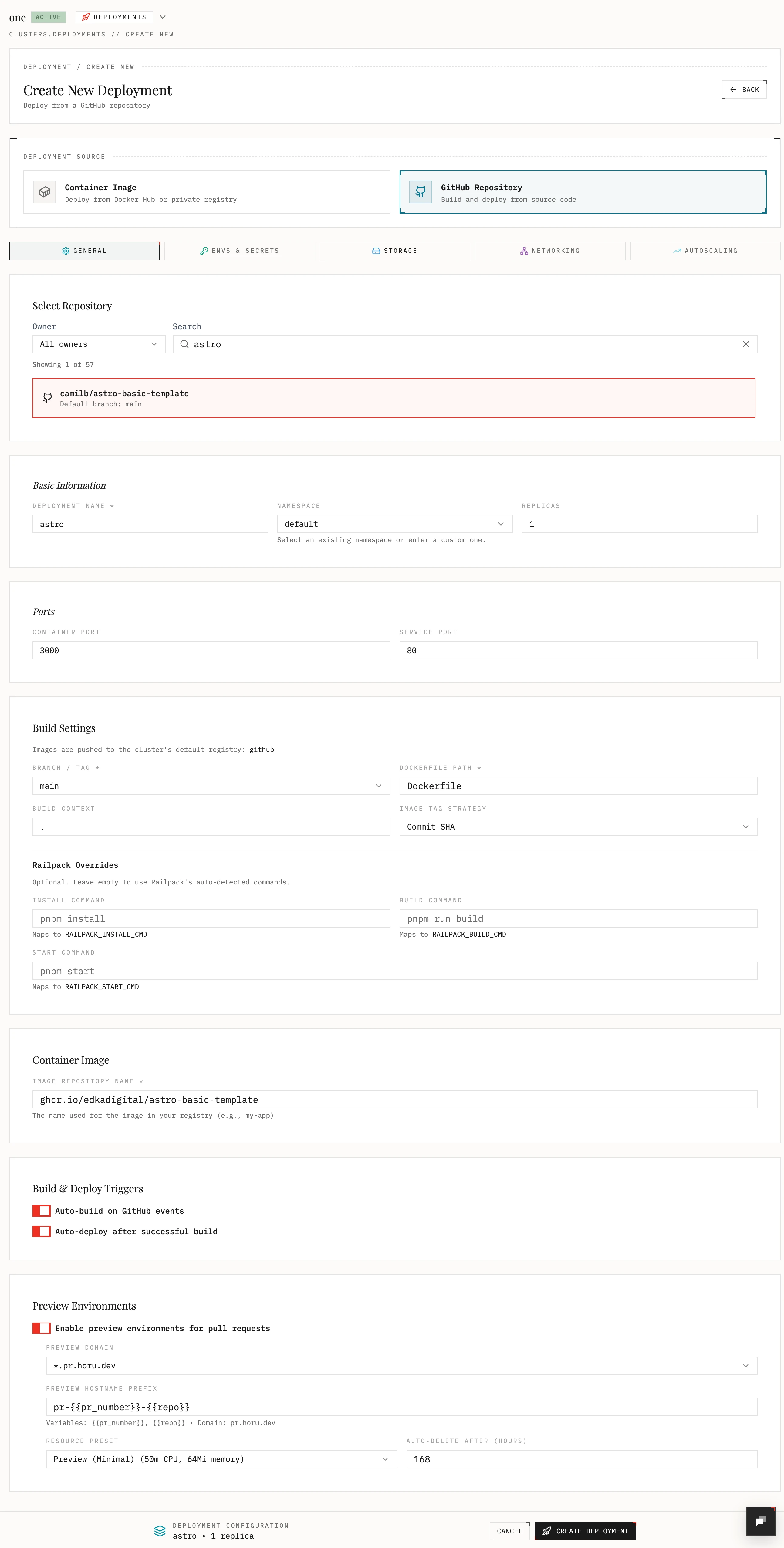

Create Branch Deployment

Build settings

  • Branch / Tag: the ref to build from (for example main or v1.0.0).
  • Dockerfile path and build context: relative to the repo root.
  • Build args: key value pairs passed to the build.
  • Railpack overrides: set install, build, or start commands. These map to RAILPACK_INSTALL_CMD, RAILPACK_BUILD_CMD, and RAILPACK_START_CMD.

To learn more about Railpack, please refer to the Railpack documentation.

Build and deploy flow

  • Pushes to the configured branch trigger a build when Auto build is on.
  • The branch must match exactly; other branches are ignored.
  • Successful builds update the Git deployment record.
  • If Auto deploy is on, the deployment updates to the new image.

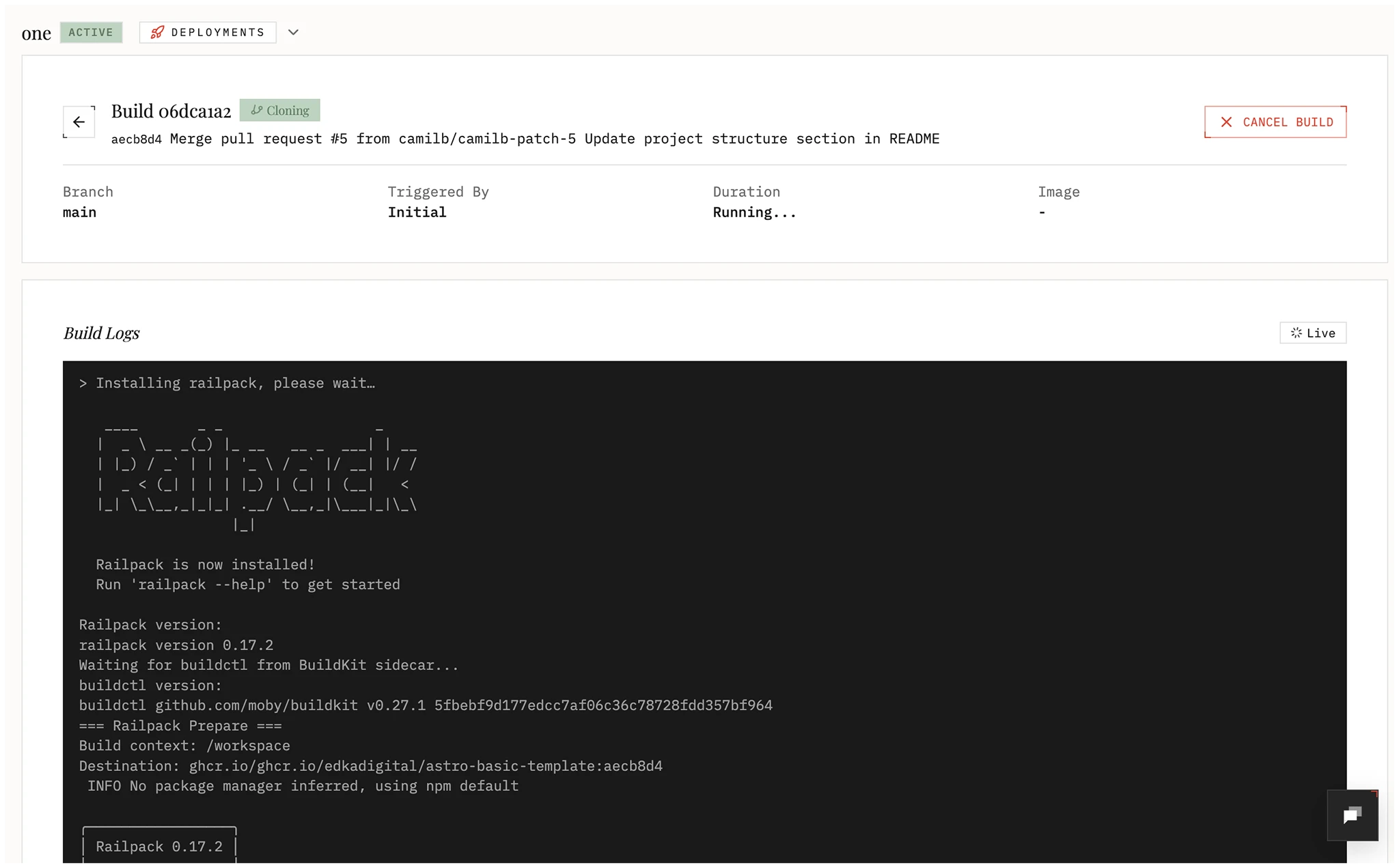

Build and Deploy Flow

You can also manually trigger a build and deploy your application from the deployment Builds tab.

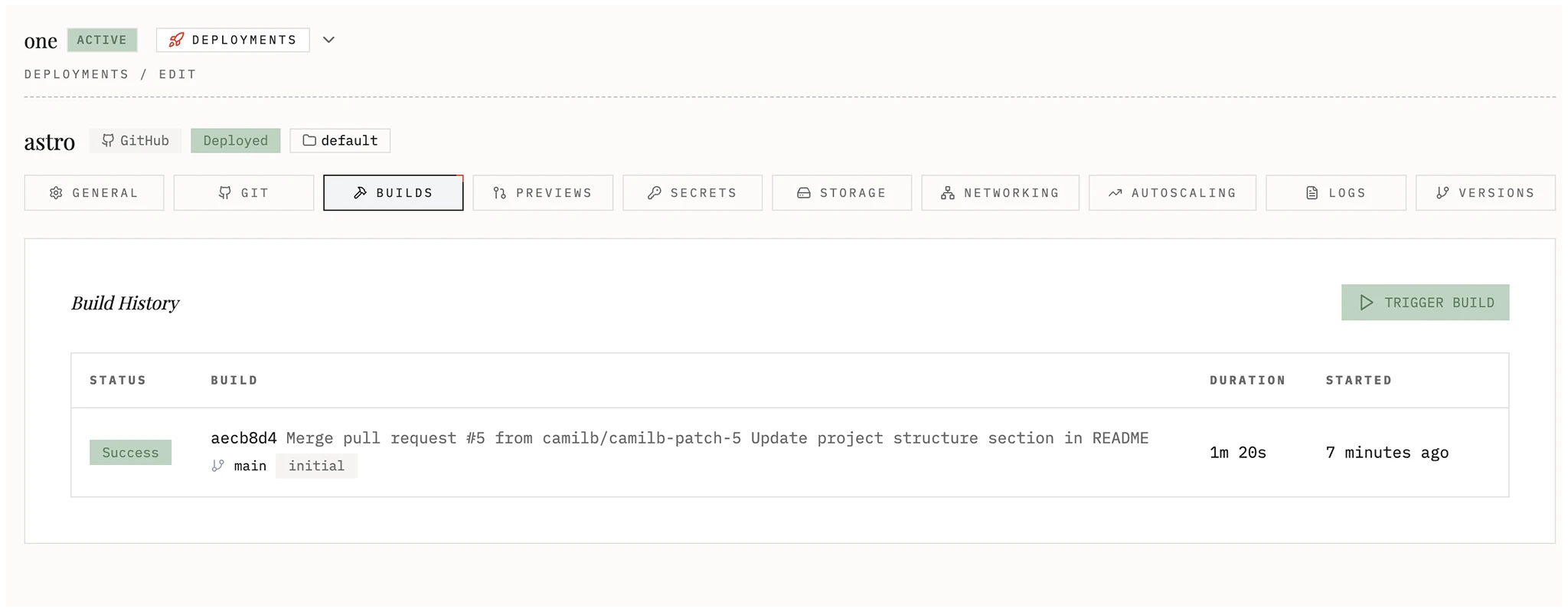

Build and Deploy Actions

Image tag strategies

  • Commit SHA (default): short commit hash.
  • Branch name: sanitized branch name.
  • Timestamp: ISO timestamp.
  • Custom pattern: supports {{timestamp}}, {{branch}}, {{commit_sha}}, {{commit_sha_short}}, {{sha}}.

Preview environments for pull requests

When enabled, Edka creates a preview environment for pull requests that target the configured branch.

  • PR actions supported: opened, reopened, synchronize (update), closed (delete).
  • Preview domains must be wildcard domains marked as preview and must match the deployment ingress class.
  • Multiple preview wildcard domains per ingress class are supported. Each Git deployment can select a specific one.
  • Preview hostnames use a single DNS label under the wildcard domain. Default prefix: pr-{{pr_number}}-{{repo}}.
  • Supported prefix variables: {{pr_number}}, {{repo}}, {{timestamp}}, {{deployment_name}}, {{hostname}}.
  • Resource presets:
    • preview: 50m CPU, 64Mi memory
    • small: 100m CPU, 128Mi memory
    • medium: 250m CPU, 256Mi memory
  • Auto delete after N hours (1 to 720, default 168).
  • Preview deployments run in the preview namespace.

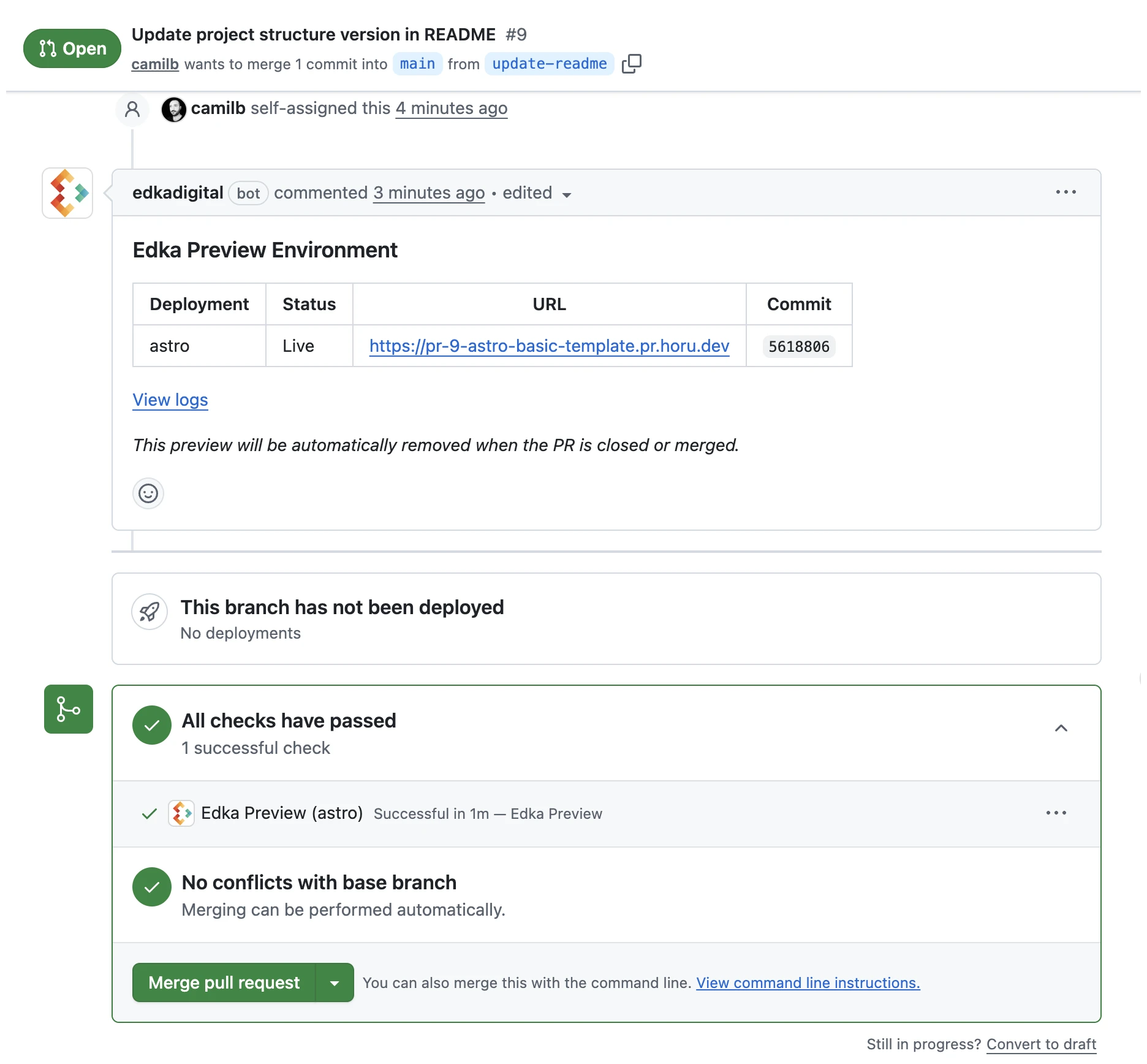

Create a Pull Request in your GitHub repository and Edka will create a preview environment for it. Preview Environments

You can check all your preview environments in for the specific deployment in the Previews tab. Preview Environments

TLS for previews

  • At least one wildcard domain must be set as for preview environments. It can be configured in the Cluster Domains.
